Bar peeling machine

company : Yantai Haige International Trading Co.,Ltd
address : No.1 JingQi Road, High-tech Zone, Yantai Shandong Province, CHina

Contact

Description

  Yantai Haige Machine Tools Co., Ltd. is a manufacturer and trader specialized in the research, development and production of bar peeling machine, which comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. If you are interested in our bar peeling machine or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

  Bar peeling machine is mainly applied in the production of bright material and bright steel bar, and in the field of machinery manufacturing, auto parts, bearing production, spring manufacturing, military enterprises, the production and processing of slender shaft, titanium bar, copper bar, aluminum bar, magnesium bar and other non-ferrous metal bar or tube, and in the field of other machinery equipment manufacturing for material preparation.

Advantages & Features

  WXC Series Centerless Lathe(commonly known as peeling machine)is a new generation high-efficiency lathe machine which is specialized in processing of metal bar surface such as slender shaft. It can not only quickly remove defects on the surface of round steel such as decarburization layer and cracks, but also realize relatively high precision and roughness. It is especially suitable for processing of super long round steel bar, with working efficiency several times of the traditional processing technology.

High efficiency: With several cutters working together, the efficiency is dozens of times higher than the ordinary lathe.

High precision:The finished bars can reach diameter tolerence ≤ h9, surface roughness Ra ≤ 3.2µm.

Non-pollution: All the scraps can be recycled.


Products Classification

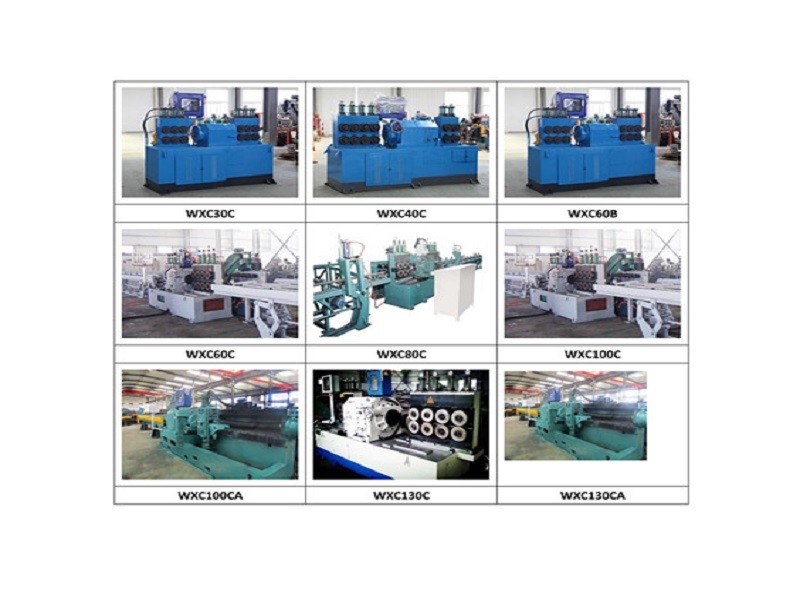

  WXC series of centerless lathe includes CNC type and semi - automatic type.

  The CNC type is PLC multi point controlled to realize the automatic cutting tool adjusting without shutting down the machine, that is say, on power motorized tool adjusting. According to the tiny diameter changes of processed material, the closed loop on power automatic control of material diameter can be realized which will greatly improve the processing accuracy and efficiency. CNC structure is the combination of mechanical, electrical and hydraulic, with the advantage of high automation, high efficiency and easy operation

Semi-auto

Technical Parameter

The table below is solely the parameter of WXC30S. To contact us(contact way shown at the end) for more details of more models!

MODEL

WXC30S

material requirement

diameter range (mm)

6.5dia31

material length (mm)

≥1400

yield strength(Mpa)

≤1100

surface hardness

≤HB320

straightness (mm/m)

≤1.5

diameter tolerance

according to GB 702-2004 second group

roundness(mm)

≤50% of diameter tolerance

surface roughness(Ra)

≤2550μm

finished product

diameter range(mm)

6≤dia≤30

diameter cutting depth(mm)

0.5~1.0

diameter tolerance

≤h9

surface roughness (Ra)

≤3.2μm

feeding speed (m/min)

1.0~10.0

cutting head rotation rate per minute(rpm)

900~2500

main motor(kw

45

total capacitykw

65

compressed air (prepared by user)

0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine

Certificate

Customer

Exhibition

Packaging

Company Profile

  Yantai Haige Machine Tools Co., Ltd. Was built in 1999, which specializes in producing steel finishing equipment, such as hard chrome electroplating equipment, Series JY Bar Straightening Machine, Abrasive Belt Ginder, Drawing Machine, Shot Blasting Machine, Centerless Grinding Machine, CNC skiving and Roller Burnishing Machine and Auxiliary Machine etc. We also engage in continuous hard chrome plating equipment and heat treatment equipment.

Based on nearly 20 years manufacture and design experience, our machines have been exported to Russia Vietnam, India, Pakistan, Iran, South Korea, North Korea, Taiwan and other countries and regions.

  This is an general introduction to bar peeling machine. To know more about it, please contact us. Thanks for your kind inquiry! We will provide you with excellent quality and perfect service.
